Solution Overview

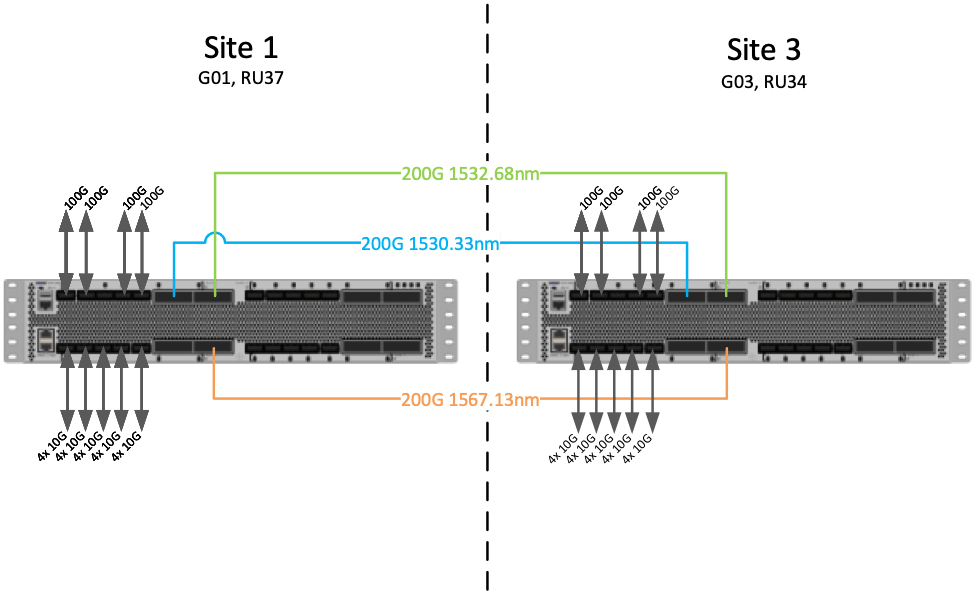

This topology utilizes two NCS 1002's for point to point transport of various sized wavelengths. Two slices are being used on each device: the first provides 4 100G clients mapped to 2 200G trunks operating at two different wavelengths; the second slice provides 20 10G clients mapped to 1 200G trunk operating at a third, unique wavelength. All client and trunk optics are connected via our Calient S320 optical switch.  Wavelength 1532.68 on the first slice is routed through our NCS 2000 DWDM system while the other two trunks are direct connections.

Goals & Objectives

The purpose of this lab is to demonstrate the provisioning of 2 NCS 1002’s in a point to point configuration; commonly used for interconnecting geographically diverse data centers (DCI).  We will configure various client and trunk rates across 2 of the 4 available “slices” on each box using Command Line (CLI) and EPNM (GUI) interfaces.  We will configure Site 1 with CLI then configure Site 3 with EPNM.

Hardware & Software

Hardware and software include:

  • 2x Cisco NCS1002
  • 3x 200G trunk CFP2 optics
  • 18x 10G & 100G  client QSFP+ optics
  • IOS XR ver. 6.5.2
  • EPNM ver. 3.02
